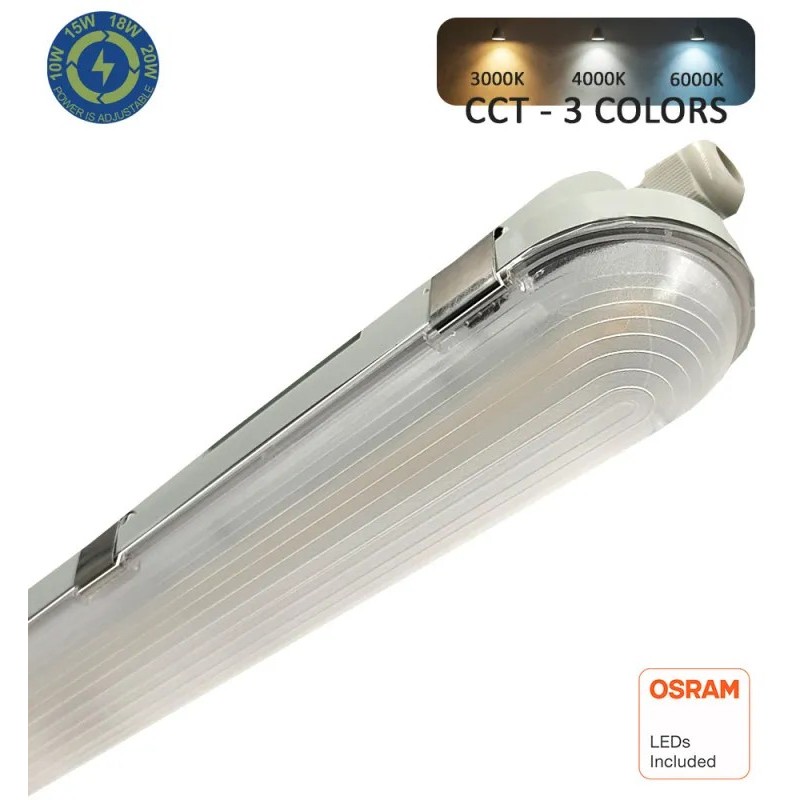

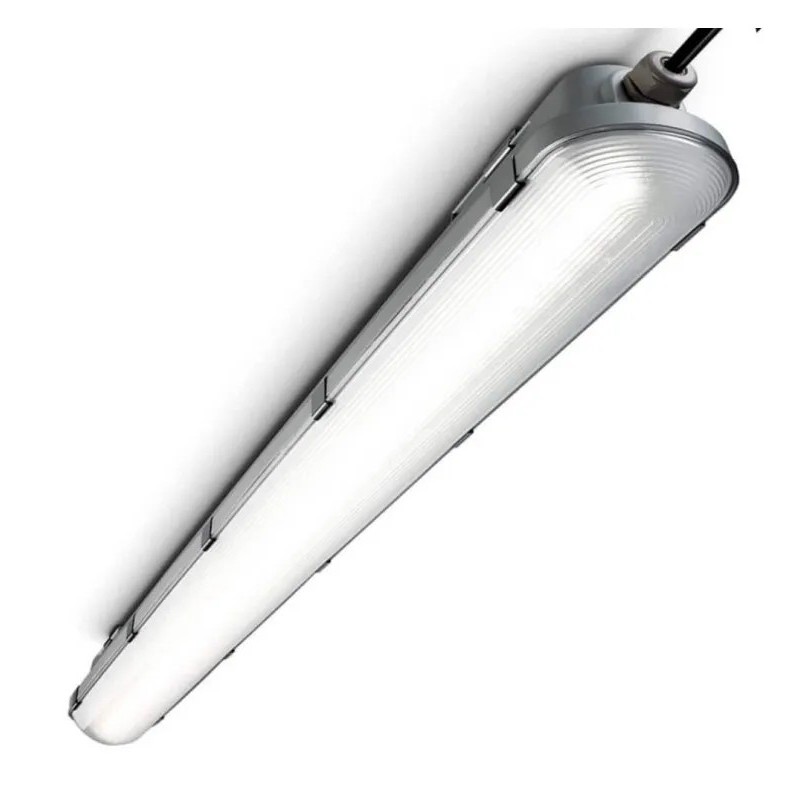

20W GXtronic Waterproof LED Screen 60CM | SMD2835 OSRAM CHIP 3CCT | IP66
The GXtronic 60cm waterproof LED screen combines power and versatility with a choice of power ratings (10W / 15W / 18W / 20W) and 3CCT color temperatures (3000K / 4000K / 6000K). Equipped with a Gxtronic driver and 140 Lm/W SMD2835 OSRAM CHIP LEDs, it offers maximum efficiency (FP > 0.9), IP66 and IK10 protection, and uniform, bright light in any environment. Its semi-transparent cover
Can be customized with an emergency kit and Plug & Play radar motion sensor.

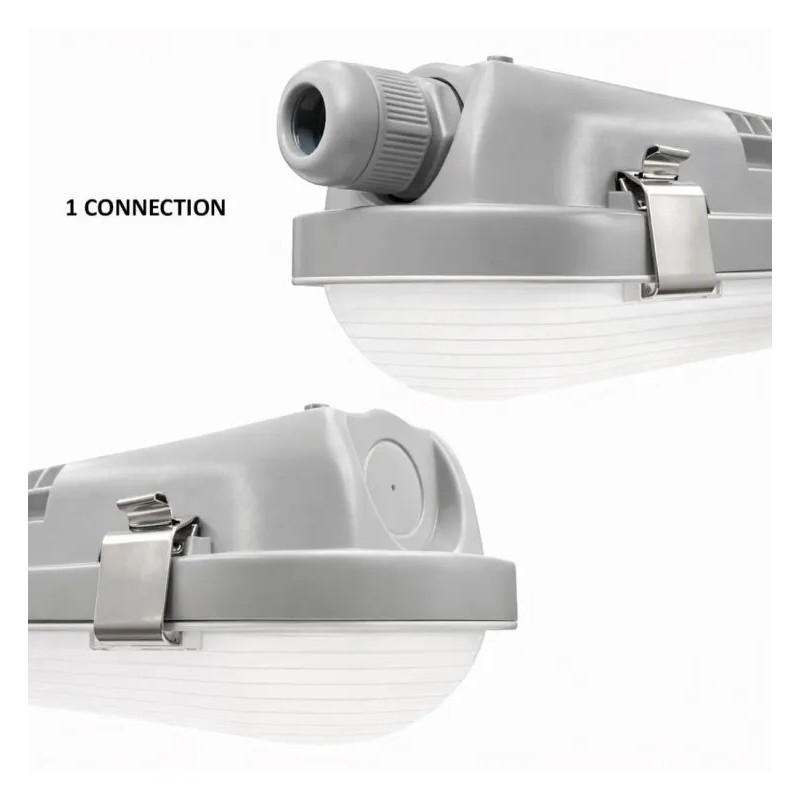

This watertight screen has a single connection at one end.
GXtronic 60CM 20W Waterproof LED Screen | SMD2835 OSRAM CHIP 3CCT | IP66

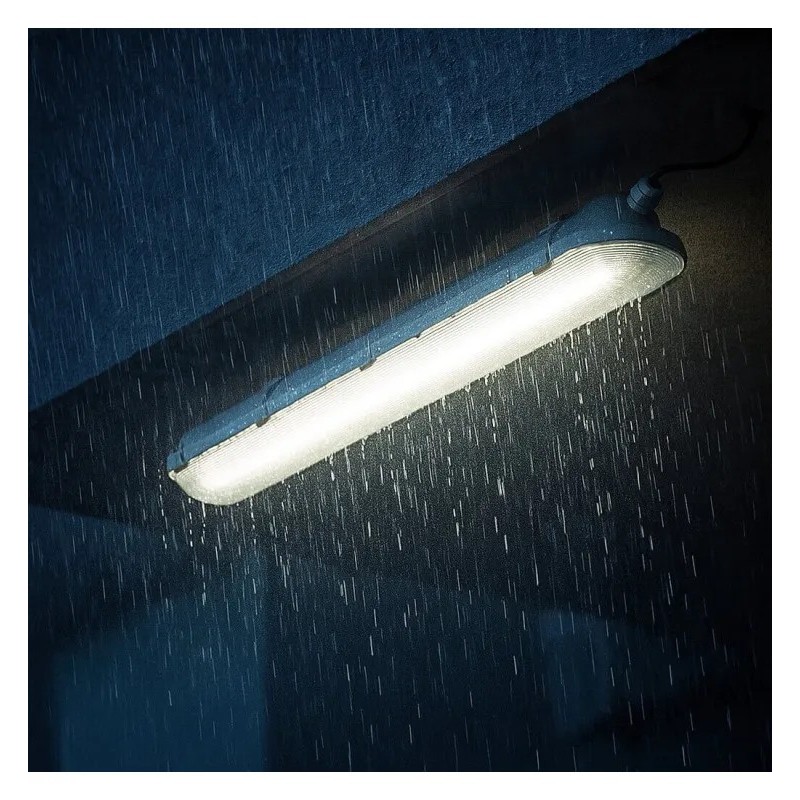

The GXtronic 60cm Waterproof LED Screen is a professional luminaire designed to offer maximum efficiency, durability, and versatility in all types of environments, both industrial and commercial. Its structure, made of high-strength ABS and polycarbonate, guarantees total protection against dust, moisture, and impacts thanks to its IP66 and IK10 ratings, making it an ideal choice for garages, warehouses, parking lots, tunnels, industrial kitchens, or areas where water is present.

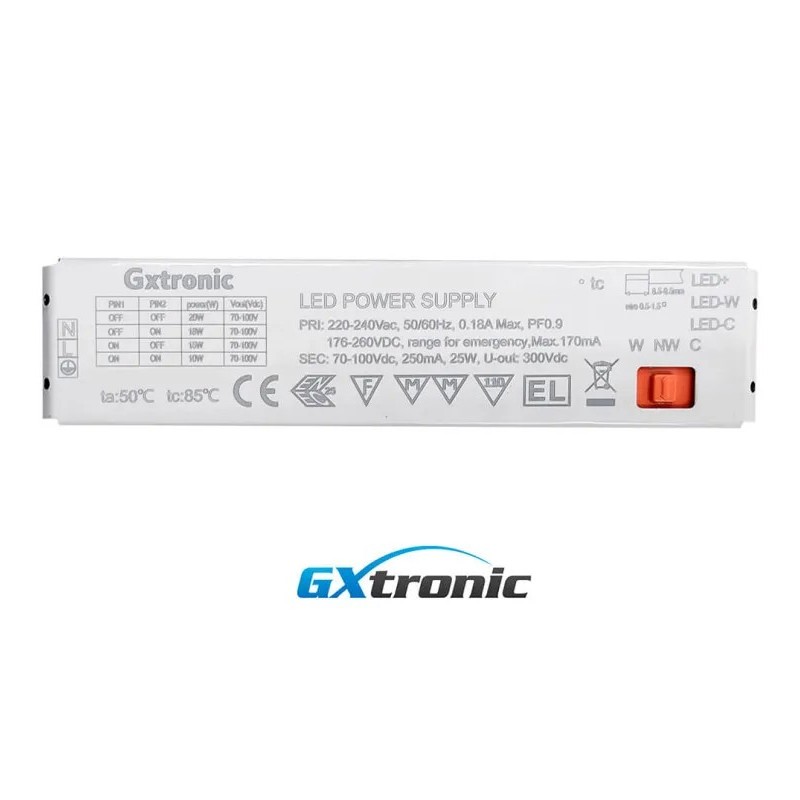

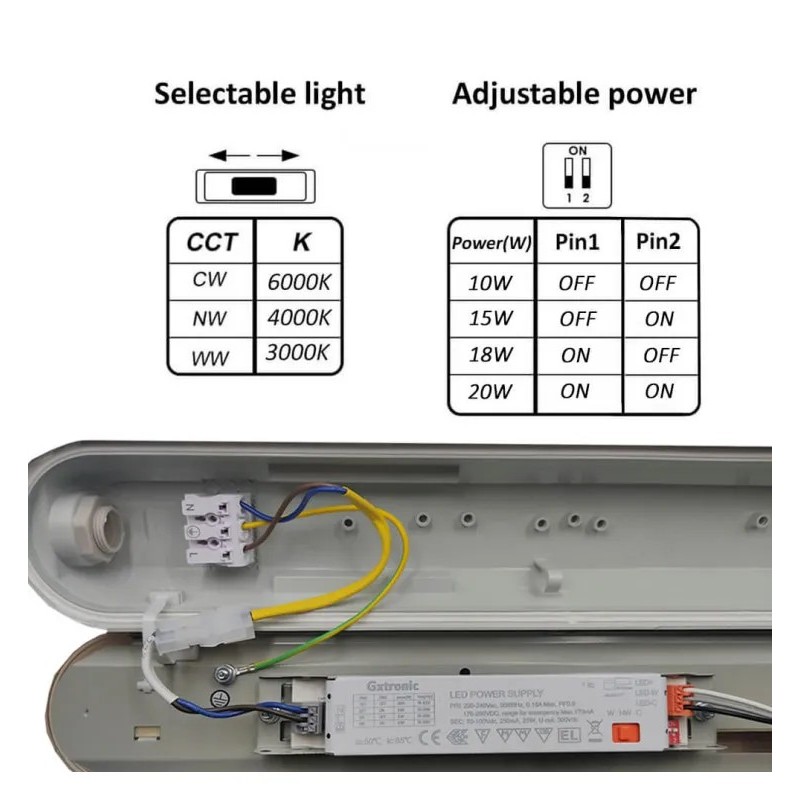

It incorporates a high-performance GXtronic driver and SMD2835 OSRAM CHIP diodes with a luminous efficiency of 140 lm/W, ensuring powerful and stable lighting with a power factor greater than 0.9. Its multi-selectable power system (10W / 15W / 18W / 20W) and 3CCT technology (3000K / 4000K / 6000K) allow both the intensity and color temperature to be adjusted according to the needs of the space or project.
Thanks to its semi-transparent diffuser, the light is distributed evenly and without glare, ensuring visual comfort and energy efficiency. In addition, it can be customized with an emergency kit to ensure continuous lighting during power outages or with a Plug & Play radar motion sensor, ideal for passageways or intermittent use.
Main advantages of the Osram Chip 20W GXtronic 60cm Waterproof LED Screen

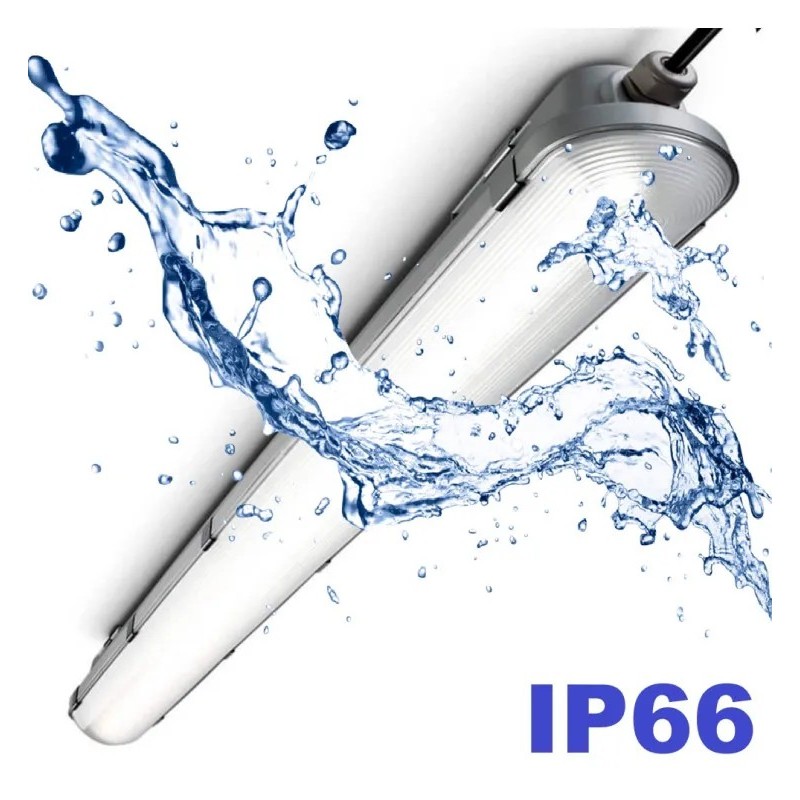

- Maximum IP66 and IK10 protection – Ideal for humid or dusty environments.
- Power and color selection (3CCT) – Allows lighting to be adapted to any environment.

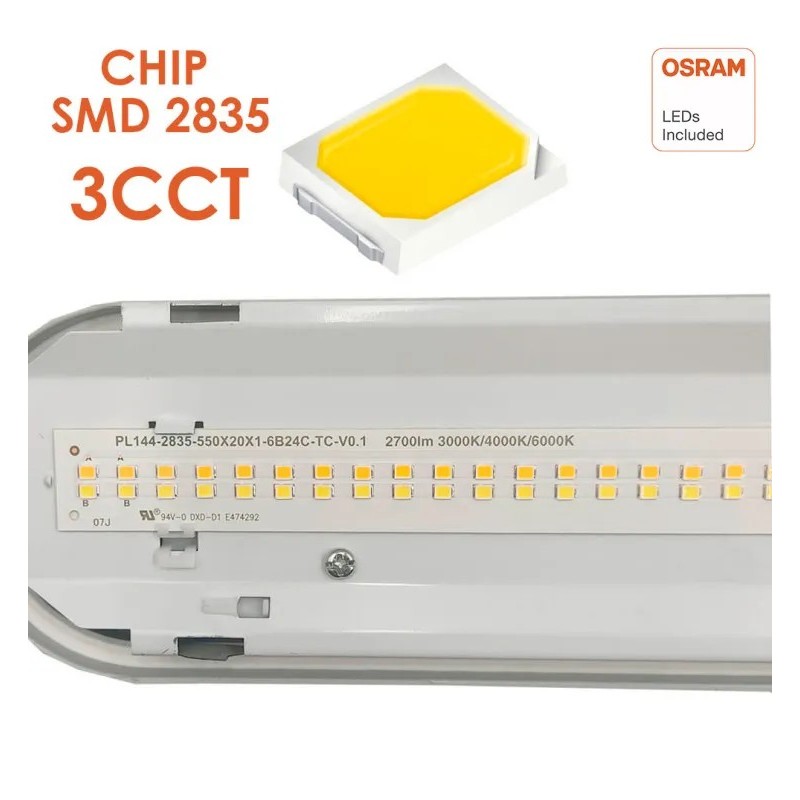

- OSRAM SMD2835 chip + GXtronic driver – Guaranteed quality, durability, and stable performance.
- Semi-transparent diffuser – Uniform, glare-free light.
- High efficiency: 140 lm/W – More light with less energy consumption.
- Compatibility with Plug & Play sensors and emergency kits – Quick and safe installation.
- Robust and professional design – Impact and corrosion-resistant materials.
Uses and applications of the 20W GXtronic 60cm Osram Chip LED Waterproof Screen

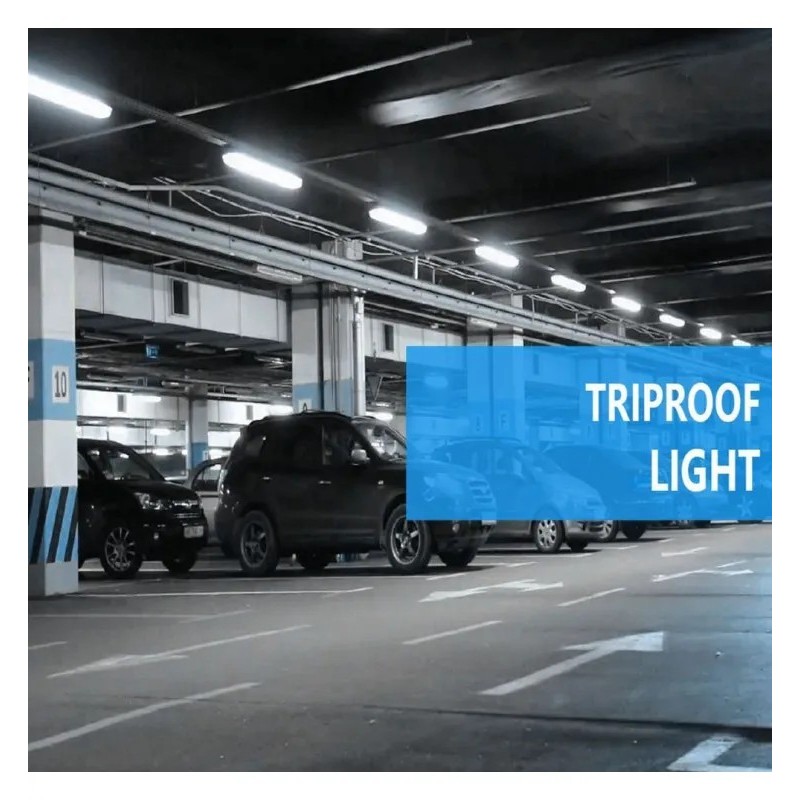

- Underground car parks and garages

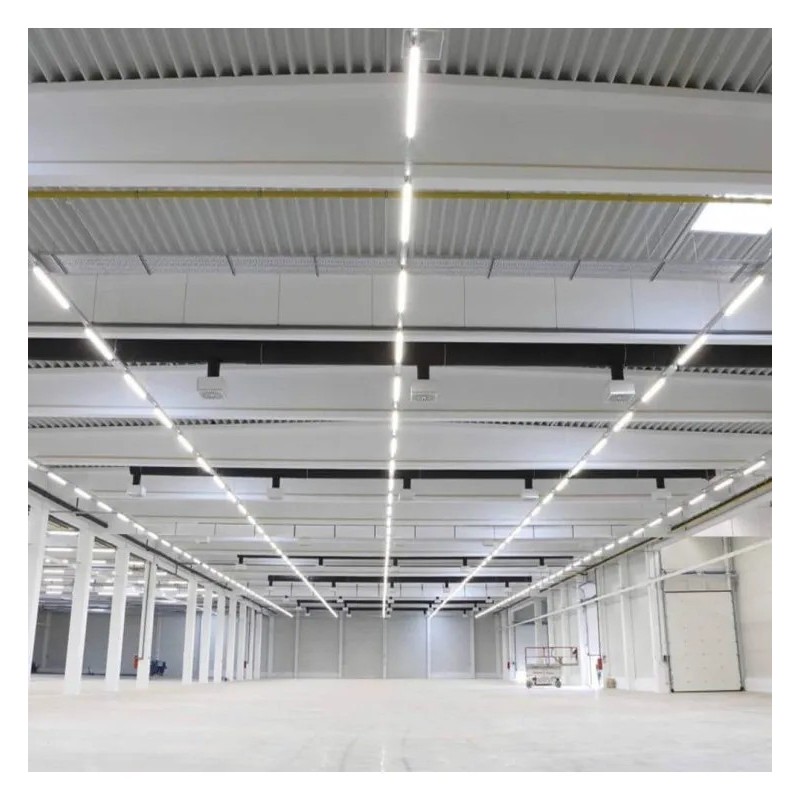

- Industrial warehouses and logistics warehouses
- Cold rooms and professional kitchens
- Passageways, corridors, or covered outdoor access areas
- Sports facilities and workshops
| REFERENCE | TPGX60CM-CCT-91458 |
|---|---|
| Nominal power | Power Select: 10W / 15W / 18W / 20W |
| Nominal voltage | 220-240v |
| Light temperature | 3CCT SELECT 3000K-4000K-6500K |
| CRI - Index Chromatic Reproduction | 80 |
| Construction material | ABS + Makrolon® 2807 |
| Energy class | E |
| Light-lm | 2800Lm |
| Type of LED | SMD 2835 Osram Chip |
| Angle opening (º) | 120 ° |
| Efficacy LED diode (LM / W) | 140 LM / W |
| Luminous efficacy (LM / W) | 130 LM / W |
| Certificates | CE - RoHS - EMC - UL |
| Ip | Ip66 |
| Estimated Life LED Diode (H) | 35.000 |

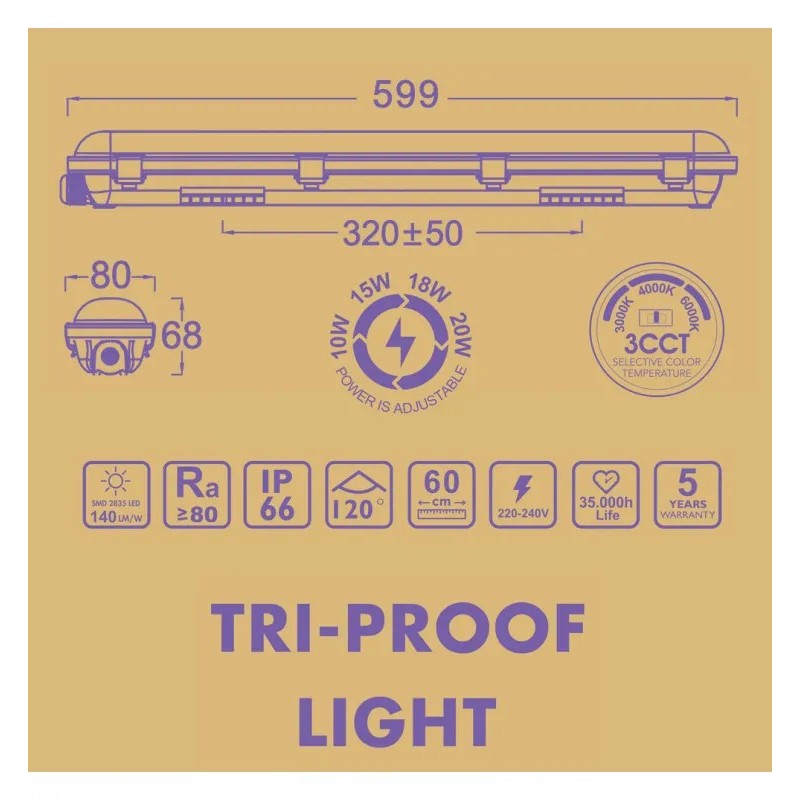

| Measures (mm) | L: 599 W:80 H:68 mm |
| Power factor (PF) | 0.95 |
| Work frequency (Hz) | 50 / 60hz |
| Temperature range (ºC) | -20 ° C ~ + 55 ° C |
| Lit cycles | 100.000 |
| Start time (s) | 0,2s |
| Additional information | Customizable with Plug & Play emergency kit and Radar motion sensor. |
| Impact protection (IK) | Ik10 |
| Driver included | Driver Gxtronic |
| Guarantee years | 5 |
